PTC-Slide21

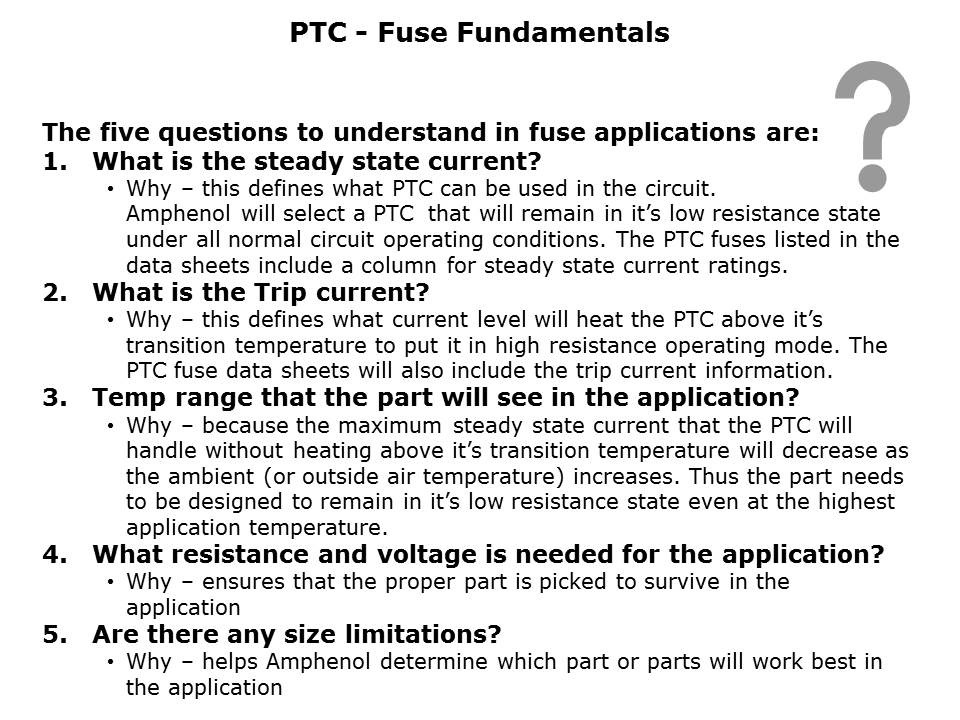

There are five questions to consider in PTC fuse applications to best chose the PTC thermistor to fit an application. What is the steady state current, what is the trip current, what is the temperature range that the part will see in the application, what resistance and voltage is needed for the application and are there any size limitations.

PTM Published on: 2013-01-14
