• Preferred Supplier

JAE Electronics

Image of JAE Electronics DX07

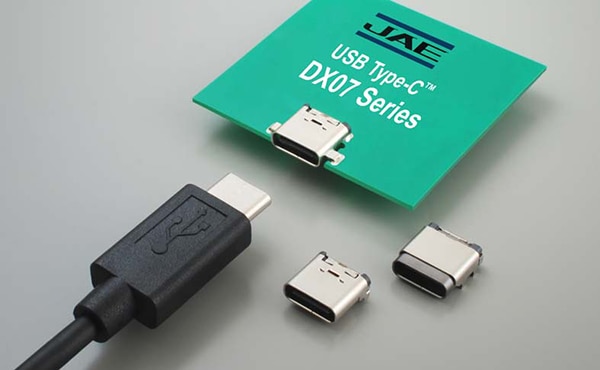

DX07 Series - USB Type-C® Connectors

With its compact design and high-density terminals, the USB Type-C connector is ideal for mobile devices. It is capable of 10 Gbps high-speed communication and a maximum of 5 A current for faster charging. This series supports high-speed data rates up to 40 Gbps; double that of the previous USB 3.2 revision.

Obtener más información
Image of JAE Electronics MA01

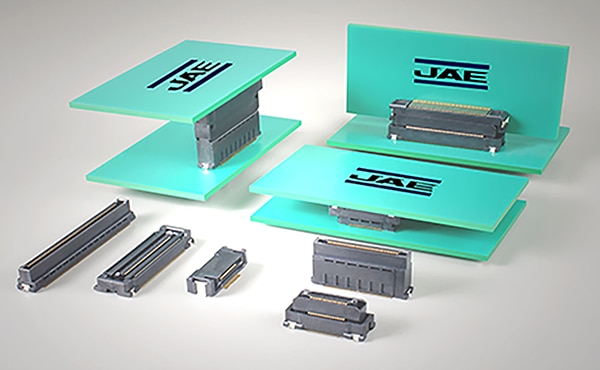

MA01 Series – Automotive Grade Floating Connectors

The MA01 series 8 Gbps+ high-speed board-to-board connectors feature floating contact technology paired with automotive-grade strength providing superior performance in high shock and vibration environments. With a floating structure of ±0.5 mm in X and Y directions, these connectors can absorb positional shifts caused during mounting and assembly by automated machinery, providing an ideal solution for fully automated assembly.

Obtener más información
Image of JAE Electronics MX80

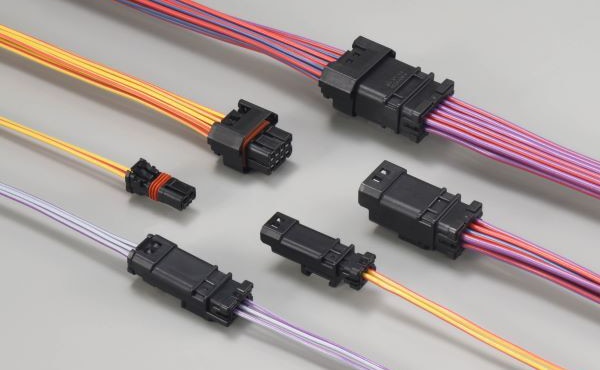

MX80 Series – Compact Waterproof Automotive In-line Connector

The MX80 series connectors have been specifically designed for use in areas where vehicle mounting space is limited. With its 0.64 mm terminal size, extensive wire size range (0.13 mm2 to 1 mm2), and high-current carrying capacity of up to 10 A, among other aspects, this series provides the performance, design, and flexibility required for today’s automotive technological advancements.

Obtener más información

Videos recomendados

JAE ST51 Series microSD Express Card Connector
JAE ST51 Series microSD Express Card Connector
JAE’s Mobile Devices Connectors | High Speed Communication
JAE’s Mobile Devices Connectors | High Speed Communication
JAE's FO-BD7D Series: Outdoor Optical Connectors Compatible with Field Harness Assembly
JAE's FO-BD7D Series: Outdoor Optical Connectors Compatible with Field Harness Assembly
JAE’s MY05 Series: 1,000 V High Voltage Low Current Connectors for BMS
JAE’s MY05 Series: 1,000 V High Voltage Low Current Connectors for BMS
Ver todos

PTM recientes

Image of JAE AN01 Series Stamped High Performance Antennas
10 minutes
AN01 Series Stamped High-Performance Antennas
This presentation will provide an overview of the applications, features, and specifications for the AN01 series of stamped antennas from JAE Electronics.
Image of JAE Electronics' MA01 Series Connectors
5 minutes
MA01 Series Connectors
This presentation will provide information on JAE’s MA01 Series of floating board-to-board connectors.
Image of JAE AX01 Series Floating Board-to-Board Connector
5 minutes
AX01 Series Floating Board-to-Board Connectors
This presentation will discuss the features, applications, and specifications for the AX01 series of connectors from JAE Electronics.
JAE's SG50 Rugged SD Card
5 minutes
SG50 Rugged SD Card
This presentation will introduce the features, applications, and benefits of the SG50 series.
Image of JAE's MX80 Series of Compact Waterproof Automotive In-Line Connectors
5 minutes
MX80 Series of Compact Waterproof Automotive In-Line Connectors
JAE Electronics’ high-performance MX80 series of sealed miniature relay connectors meet the needs of the automotive and transportation market.
Image of JAE's Waterproof USB Type-C™ Connector
5 minutes
Waterproof USB Type-C™ Connectors
Waterproof USB Type-C™ interconnects support USB 3.1 and feature different internal sealing methods to achieve a reliable IPX7 or higher ingress protection rating.
Ver todos

Acerca de JAE Electronics

- JAE Electronics es uno de los 10 principales proveedores de interconexiones del mundo y un líder en tecnología reconocido en conectores de placa a placa de paso fino, de placa a cable (incluso productos LVDS), FPC (placa a flex), tarjeta de memoria, entrada/salida, circular, automotriz/transporte y conectores a prueba de agua.
Nuestro sitio web

Contenido adicional

DOCUMENTOS TÉCNICOS

GUÍAS DE SELECCIÓN
