Micro-SD cards with the M5StampS3

2024-07-15 | By M5Stack

License: General Public License Bluetooth / BLE Programmers Wifi Arduino ESP32 M5Stack

Thanks for the source code and project information provided by @Adam Bryant

Story

Micro SD Card Adapter

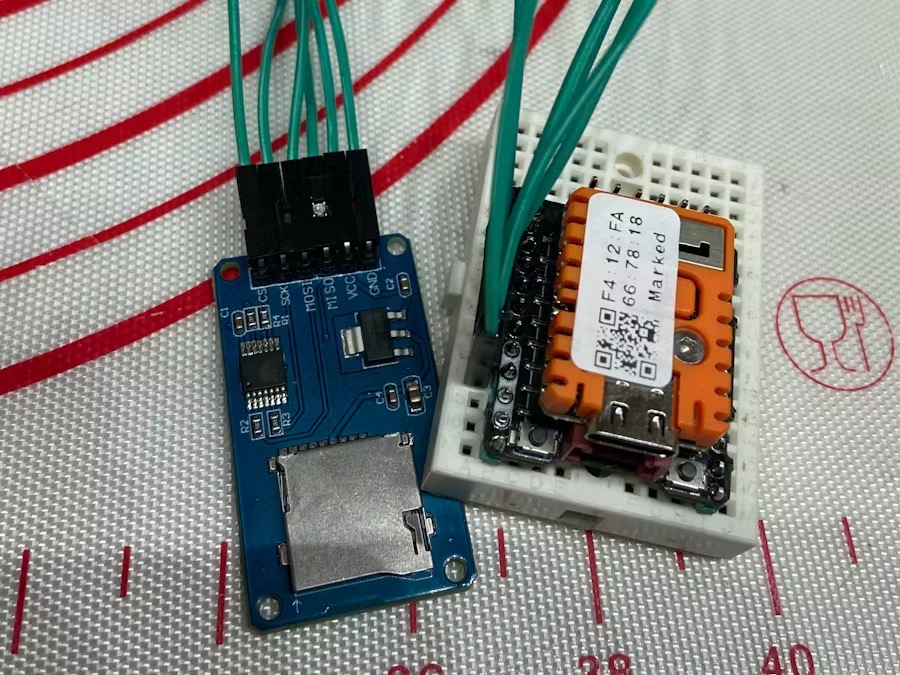

Low-cost micro-SD card adapters are available online for adding simple SD card data access. For this guide, I will be using this adapter connected over S.P.I.

Micro SD Card Adapter

The pinout for the micro SD card adapter is as follows:

Micro SD Card Adapter Pinout

In order to access the card data, we don't need any additional drivers as the functions are built into the core of MicroPython.

To use the card adapter, we first need to import the following functions:

Copy Code

import machine
from machine import Pin, SPI, SDCard
import os

Next we configure the pins that the SD card adapter is connected to with:

Copy Code

sd = machine.SDCard(slot=2, width=1, cd=None, wp=None, sck=Pin(6), miso=Pin(4), mosi=Pin(5), cs=Pin(7), freq=10000000)

And then we try mounting the card adapter with a check:

Copy Code

try:
os.mount(sd, "/sd")
except:
print("Failed to mount SD card”)

Using the following sample code from the MicroPython documentation pages:

Copy Code

filesize = stats[6]
isdir = stats[0] & 0x4000
if filesize < 1000:
sizestr = str(filesize) + " by"
elif filesize < 1000000:
sizestr = "%0.1f KB" % (filesize/1000)
else:
sizestr = "%0.1f MB" % (filesize/1000000)
prettyprintname = ""
for i in range(tabs):
prettyprintname += "  "
prettyprintname += file
if isdir:
prettyprintname += "/"
print('{0:<40} Size: {1:>10}'.format(prettyprintname, sizestr))
# recursively print directory contents
if isdir:
print_directory(path+"/"+file, tabs+1)
print("Files on filesystem:")
print("====================")
print_directory(“/sd")

We get a long list of files or which most are hidden in the OS but at the end of the list we find the files we want:

Copy Code

number.txt  Size:  6 by
._number.txt  Size:  4.1 KB
letters.txt Size: 16 by
._letters.txt Size:  4.1 KB

To access the files, we use the following code:

Copy Code

with open('/sd/letters.txt', 'r') as file:
data = file.read()
print(data)

Which will show the contents of the file.

In order to write to the card, we can use the following code:

Copy Code

with open('/sd/letters.txt', 'w') as file:
file.write("Hello, MicroPython!”)

Before we can remove the SD Card from the adapter, the card has to be unmounted with the following code or the files on the card will be corrupted.

Copy Code

os.umount(“/sd")

If we put the card back into a computer, we can view the contents of the file we just wrote the message to.

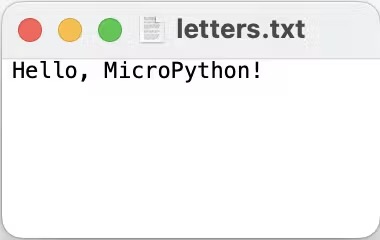

Screenshot of OSX's text editor showing the message written to the file

Code

Test code for reading and writing to SD cards. MicroPython

Copy Code

import machine
from machine import Pin, SPI, SDCard
import os

sd = machine.SDCard(slot=2, width=1, cd=None, wp=None, sck=Pin(6), miso=Pin(4), mosi=Pin(5), cs=Pin(7), freq=10000000)

try:
    os.mount(sd, "/sd")
except:
    print("Failed to mount SD card”)


def print_directory(path, tabs = 0):
    for file in os.listdir(path):
        stats = os.stat(path+"/"+file)
        filesize = stats[6]
        isdir = stats[0] & 0x4000

        if filesize < 1000:
            sizestr = str(filesize) + " by"
        elif filesize < 1000000:
            sizestr = "%0.1f KB" % (filesize/1000)
        else:
            sizestr = "%0.1f MB" % (filesize/1000000)

        prettyprintname = ""
        for i in range(tabs):
            prettyprintname += "   "
        prettyprintname += file
        if isdir:
            prettyprintname += "/"
        print('{0:<40} Size: {1:>10}'.format(prettyprintname, sizestr))

        # recursively print directory contents
        if isdir:
            print_directory(path+"/"+file, tabs+1)


print("Files on filesystem:")
print("====================")
print_directory(“/sd")

with open('/sd/letters.txt', 'r') as file:
    data = file.read()
    print(data)

with open('/sd/letters.txt', 'w') as file:
    file.write("Hello, MicroPython!”)


os.umount(“/sd")
