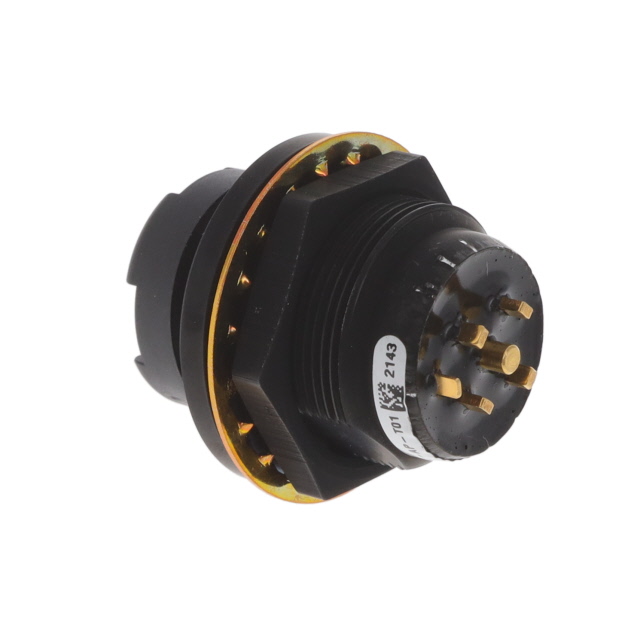

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
04J-AP-T01
04J-AP-T01
04J-AP-T01
04J-AP-T01

04J-AP-T01

Digi-Key Part Number
GH7873-ND
Manufacturer
Grayhill Inc.
Manufacturer Product Number
04J-AP-T01
Description
SWITCH NAVIGATION CASTLE 2A 115V
Manufacturer Standard Lead Time
12 Weeks
Detailed Description
Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
Customer Reference
Datasheet Datasheet
Product Attributes
Type
Description
Select
Category
Mfr
Grayhill Inc.
Series
04J
Package
Bulk
Product Status
Active
Type
Navigation Switch, 2 - Axis
Actuator Type
Castle
Switch Function
4-Way Directional, Center Select
Functions, Extra
-
Output
Digital (Mechanical Switch)
Voltage - Supply
-
Current Rating (Amps)
2A (AC/DC)
Voltage Rating - AC
115 V
Voltage Rating - DC
28 V
Contact Material
Nickel
Contact Finish
Gold
Mounting Type
Panel Mount
Termination Style
PC Pin
Operating Temperature
-55°C ~ 85°C
Panel Cutout Dimensions
-
Ingress Protection
IP68 - Dust Tight, Waterproof
Features
-
Mechanical Life
100,000 Cycles
Electrical Life
100,000 Cycles
Operating Force
454gf
Base Product Number
04J-AP
Documents & Media
Resource TypeLink
Datasheets04J Series Datasheet
CAD Models04J-xx-T0x.stp
HTML Datasheet04J Series Datasheet
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8536.50.9065
All prices are in EUR
Bulk
QtyUnit PriceExt Price
1140,26000 €140,26 €
5138,28400 €691,42 €
10130,38200 €1.303,82 €
25122,47960 €3.061,99 €
50112,60240 €5.630,12 €
You May Also Be Interested InSee All 33
Additional Resources
AttributeDescription
Other Names
04J-AP-T01-ND
GH7873
Standard Package1
